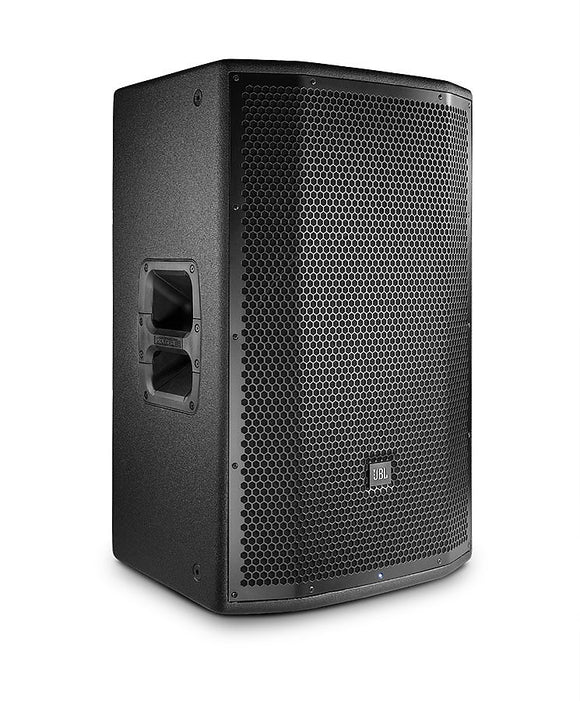

JBL PRX815W 15" Two-Way Full-Range Main System and Floor Monitor w/ Wi-Fi

PRODUCT HIGHLIGHTS

• For Bands, DJs, Clubs, Schools, Churches

• Optimized for FOH or Monitors

• 15" Woofer and 1.5" Compression Drivers

• Frequency Response 56 Hz to 20 kHz

• 137 dB Max SPL Output

• 1500W Class-D Amplifier (2x 750W)

• Coverage Pattern: 90 x 50degree

• Extensive DSP Control Over Parameters

• Wi-Fi Control of DSP Parameters

• Free PRX Connect App for iOS & Android


The PRX815W from JBL is a 2-way powered loudspeaker designed for main PA and monitor applications with extensive Wi-Fi control over the on-board DSP. Well suited for event halls, bands, DJ systems, clubs, bars, schools, and churches, the speaker utilizes two 750W Class-D amplifiers delivering a total of 1500W to the 15" woofer and 1.5" compression driver, which combine to offer a frequency range of 50 Hz to 20 kHz at 137 dB maximum SPL output.

The built-in Wi-Fi offers wireless control of the system from anywhere in the venue using the free PRX Connect app for iOS and Android devices. The app controls levels, parametric EQ, user presets, and up to 50ms of user-defined delay to fine-tune your setup. The durable 18mm plywood enclosure is coated with an Obsidian DuraFlex finish and a powder-coated steel grille with acoustical transparent black-cloth backing.

• Maximum SPL Output 137 dB Peak

• 15" Differential Drive low-frequency driver for low distortion and higher SPL

• 1.5"-diameter next-generation JBL neodymium compression driver

• 1500W (dual 750 watt) highly efficient Class-D amplifier

• Optimized EQ for monitor or front-of-house applications

• Wireless remote control of its on-board DSP EQ parameters via Wi-Fi. Control and configure your show from anywhere

• DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ

• Professional XLR-1/4" combination inputs, RCA inputs, and XLR loop-through

• Integrated 36mm pole-mount socket with angle-down tilt

• Integrated 12 x M10 suspension points

• Lightweight poplar-plywood cabinets made structurally sound with tongue-and-groove joints and protected by JBL's tour-proven DuraFlex finish

• UPC: 691991005350

• System Type Self-Powered 15.0" / 38.1 cm, two-way, bass-reflex

• Max SPL Level 137 dB peak

• Frequency Range Frequency Range (-10 dB)

• Main: 50 Hz to 20 kHz

• Monitor: 46 Hz to 20 kHz

• Frequency Response ± 3dB Main: 56 Hz to 20 kHz

• Monitor: 56 Hz to 19 kHz

• Input Connectors 2 x Balanced combo XLR-1/4" / 6.35 mm input

• 2 x unbalanced RCA input

• Input Impedance 20 kOhms (balanced)

• 10 kOhms (unbalanced)

• Signal Indicator Limit: Yellow LED indicates peak output has been reached and DSP limiter is acting

• Signal: Green LED indicates signal present

• Power: Blue indicates system has power and ready to pass audio

• EQ Section User-selectable presets for Main or Monitor position, Advanced EQ settings available using Wi-Fi and PRX Connect application

• Dynamics dbx Type IV limiter circuit

• Crossover Frequency 2.0 kHz

• Amplifier

• Design Highly efficient Class-D amplifier

• Power Rating 1500 W (750 W x 2)

• AC Power 100 to 240 VAC ~ 50/60 Hz

• Speaker

• LF Driver 1 x JBL 275G 305 mm (15.0" / 38.1 cm) woofer

• HF Driver 1 x JBL 2408H-2 (1.5" / 3.8 cm) annular polymer diaphragm, neodymium compression driver

• Coverage Pattern 90 x 50degree nominal

• Directivity Directivity Index (DI): 10.2 dB

• Directivity Factor (Q): 10.4 dB

• Enclosure Asymmetrical, 18 mm, plywood

• Suspension / Mounting Dual 1.4" / 36.0 mm pole socket, 12 x M10 Suspension Points

• Transport and Storage 1 x injection-molded handle with backing cup

• Finish and Grille Color Finish: Obsidian DuraFlex finish

• Grille: Powder-coated, Obsidian, 16-gauge perforated steel with acoustical transparent black-cloth backing

• Dimensions (H x W x D) 27.6 x 17.5 x 14.1" / 70.1 x 44.5 x 35.8 cm

• Weight 58.0 lb / 26.3 kg
