Kluson 3 On A Plate Supreme Series Tuning Machines Gold w/ Metal Oval Button

Kluson 3 On A Plate Supreme Series Tuning Machines Gold w/ Metal Oval Button

  • $77.00
    Unit price per
Shipping calculated at checkout.

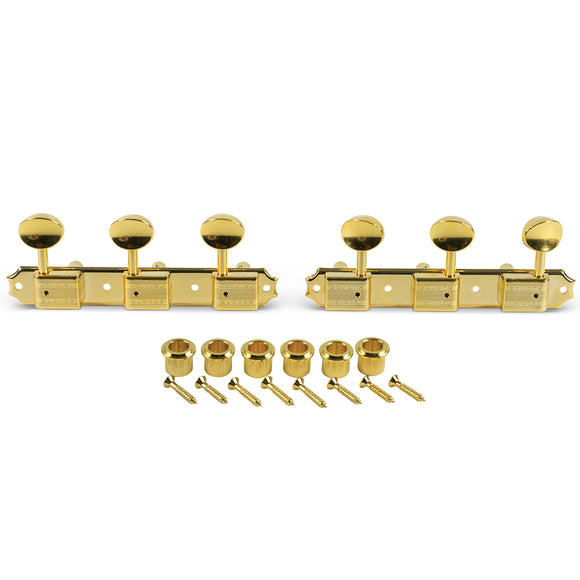

Kluson 3 On A Plate Supreme Series Tuning MachinesThe Kluson Supreme series tuning machines have an 18:1 gear ratio in the traditional stamped steel housing. This particular set is designed for instruments using a plate mounted 3 + 3 tuning machine set with an upgraded gear ratio to original machines.The housing bears the series name "SUPREME" in place of the original "DELUXE" moniker but this is the only hint to what lies hidden under the dust cover. Using all vintage specs these tuning machines will drop right into your instrument using vintage 3 per plate tuning machines with no modifications. The smooth and reliable performance of the Supreme Series outshines the rest in its class. This is a complete set and comes with left and right side machines with hardware needed for installation.Uses Kluson Bushings MB65N US (Nickel) or MB65G US (Gold) Gear Ratio = 18:1 Center to center distance of all 3 posts= 2 3/4 in. Center to center distance between posts - 1 3/8 in. Length of baseplate- 4 1/4 in., post height= 1 in. This is a complete set and comes with both left and ride side tuning machines. Also comes complete with bushings and mounting screws.
