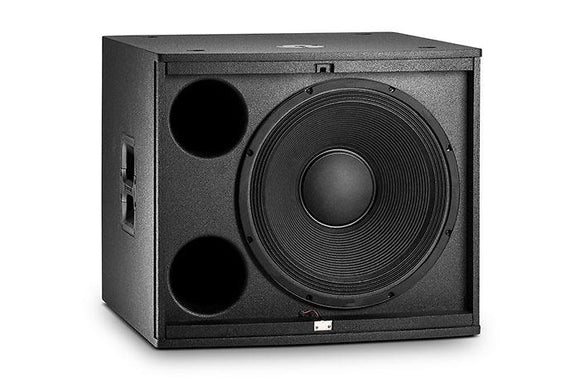

JBL EON618S 1000 Watt Powered 18 Inch Subwoofer
18" Self-Powered Subwoofer The EON618S is a powered portable PA subwoofer in the EON600 series from JBL Professional. It has been designed to deliver class leading performance in a variety of applications supporting EON600 and other full range systems. A lightweight, highly useful enclosure allows the speaker to be easily transported and set up wherever low frequency reinforcement is needed.
FEATURES
SPECIFICATIONS
System TypeSelf powered 18" Subwoofer
Maximum SPL Output134 dB
Frequency Range (-10 dB)31Hz 150Hz
Frequency Response (-3 dB)42.5Hz 150Hz
System Power Rating1000W Peak, 500W Continuous
Input Impedance22k (balanced)
Line Input Gain0 to 36 dBu
Line+14dBu
Connectors2 x Balanced XLR-1/4" combination inputs;
2 x male XLR loop thru out
LED IndicatorsFront Power LED (Defeatable, white) Rear Power LED (White), Bluetooth (Blue), EQ+ (Green) Preset (Green) Signal (Green) Limit (Orange)
CoolingPassive
AC Power Input100-120VAC 50/60Hz; 230-240VAC 50/60Hz
AC Power Consumption (120V~)1/8th Power 1.14A (Max), 1/4th Power 1.71A (Max),
1/3rd Power 2.03A (Max)
LF Driver1 x JBL 618H 457mm (18") woofer with 2" voice coil
Crossover FrequencySelectable; 80 Hz, 100 hz, or 120 Hz
MaterialDuraflex coated wooden enclosure
Suspension/MountingM20 Threaded Pole Cup
Handles2
GrillePowder coated, Obsidian, perforated steel with acoustically transparent black cloth backing
Dimensions (L x W x H)582mm x 668mm x 645mm
(22.9" x 26.3" x 25.4")
Weight72 lbs (35.5 kg)
Shipping Weight91 lbs (41.2 kg)
Shipping Dimensions (L x W x H)803mm x 768mm x 631mm (31.6" x 30.2" x 25.1")
FEATURES
- JBL Premium Transducers
- 1000 W highly efficient Class-D amplification
- Maximum SPL Output: 134dB
- System Type: Self powered 18" Subwoofer
- Frequency Range (-10dB): 31Hz - 150Hz
- Frequency Response (- 3dB): 42.5Hz - 150Hz
- Bluetooth Control
-3 Parametric EQs + Hi & Lo Shelf -Gain and Delay -Save and Recall settings -Polarity Inversion - JBL Engineered Crossover Presets
-80 Hz -100 Hz -120 Hz -EON - M20 Pole Cup
- Rugged, stage-ready Duraflex enclosure
